LNG Pump Handling Tank Jib Cranes

South Pars Gas Field Development, Iran

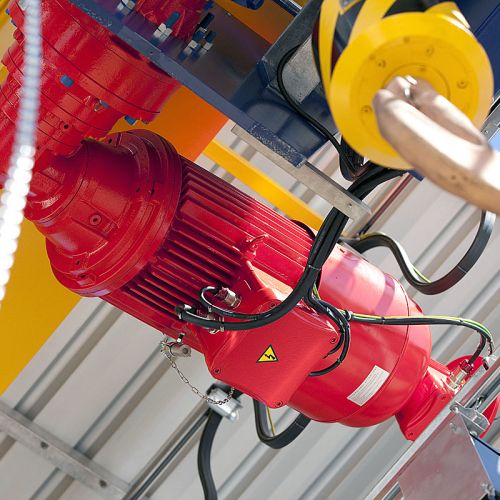

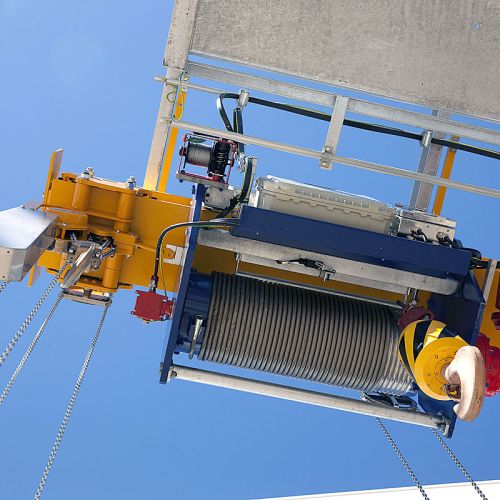

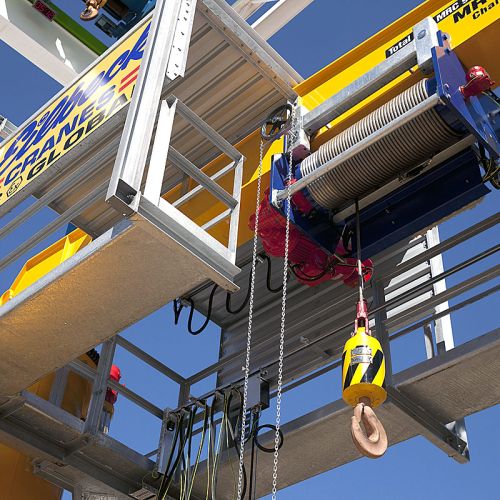

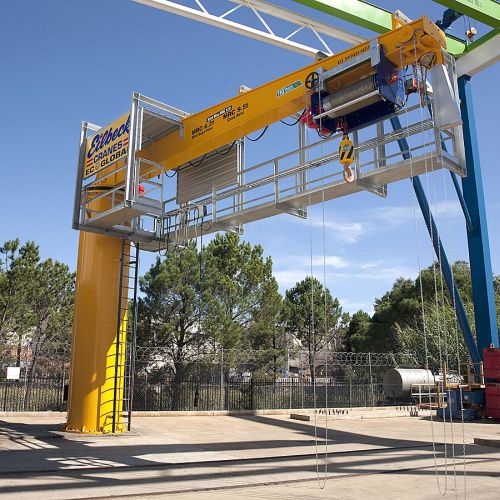

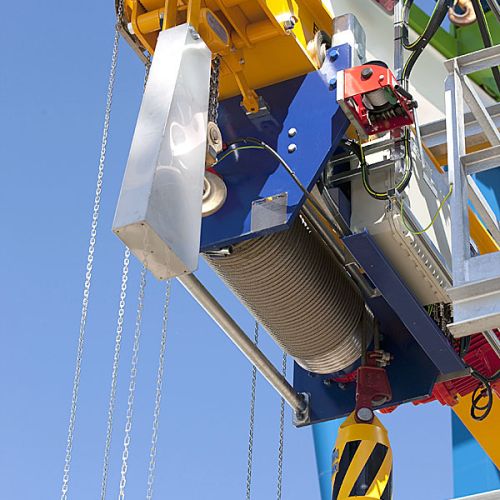

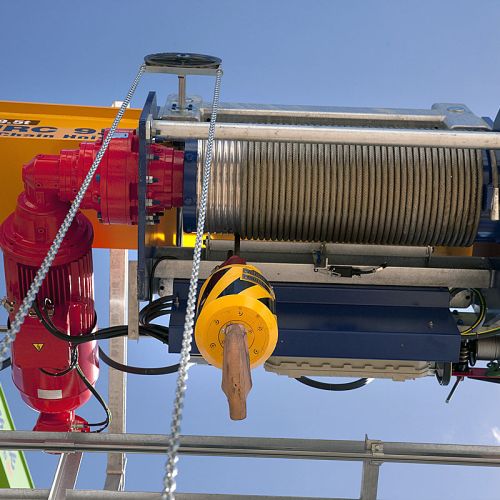

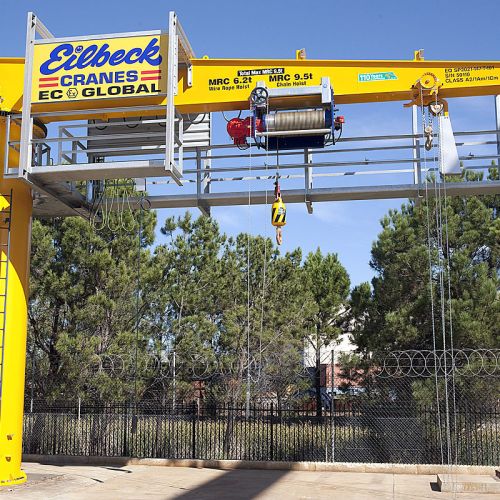

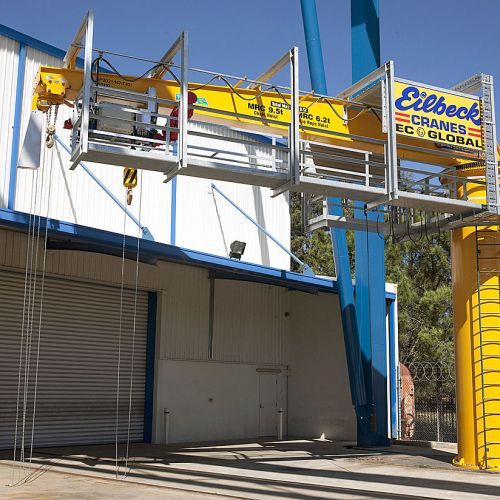

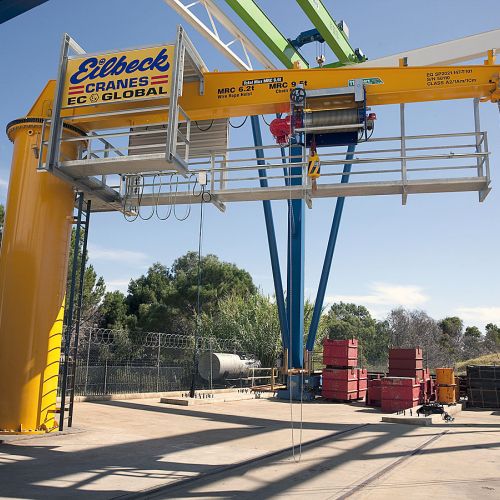

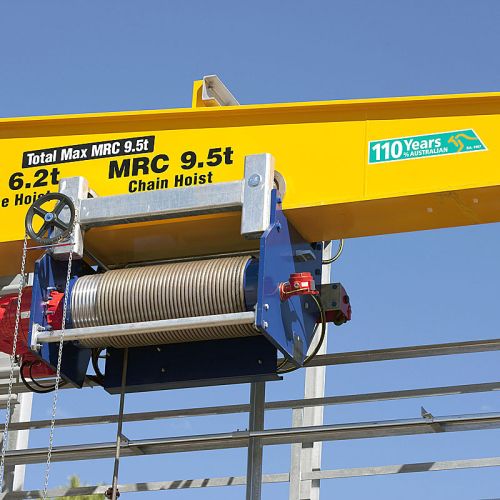

At present Eilbeck Cranes is working on an ex-proof project for South Pars Gas Field Development in Iran. The project includes eight jib cranes for the servicing of LNG pumps on top of the cryogenic storage tanks.All cranes are equipped with Eilbeck Cranes’ explosion proof wire rope hoists manufactured at its hoist production facility in Sydney. The cranes are load tested at Eilbeck Cranes’ test facility to 125% MRC prior to shipment to Iran.

Features of Cranes

  • Hazardous Area Classification: Zone 1 IIB T3 As per ATEX
  • Design: FEM , DIN 15018 (BS for SAT)
  • Ambient Temperature: Min. 20 to Max. 480
  • Seismic: UBC Zone 4,Site Co-efficient S2, Importance Factor 1.25
  • Hazardous Area: ATEX
  • Electrics: ATEX, European Standard
  • Crane Capacity: 11.2 tonnes & 9.5 tonnes
  • Jib Radius: 11.3t@9m ,7.7t@ 8m & 9.5t@9m,6.2t@8m
