Flat Cable Glands IECEx and Atex approved

Flat Cable Glands for Hazardous Environments

Eilbeck Cranes provides Flat Cable Glands for EX Zones as a termination solution for Explosion Protected Glands used in Hazardous and Industrial environments, both onshore and offshore, above and below ground.

Our flat cable glands are designed for strict adherence to global specifications of Ex d and Ex e enclosures, for IEC wiring standards, meeting international certification requirements including ATEX & IECEx.

Eilbeck Cranes flat cable glands are the easiest and safest solution for your installation and maintenance needs.

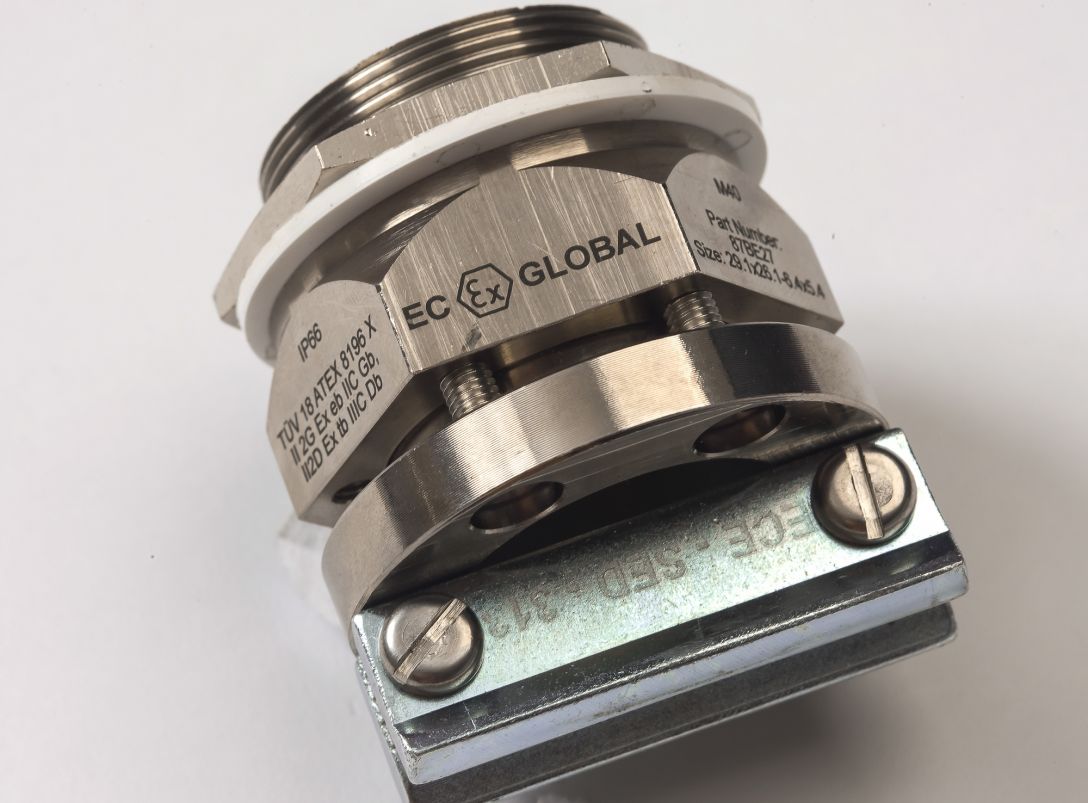

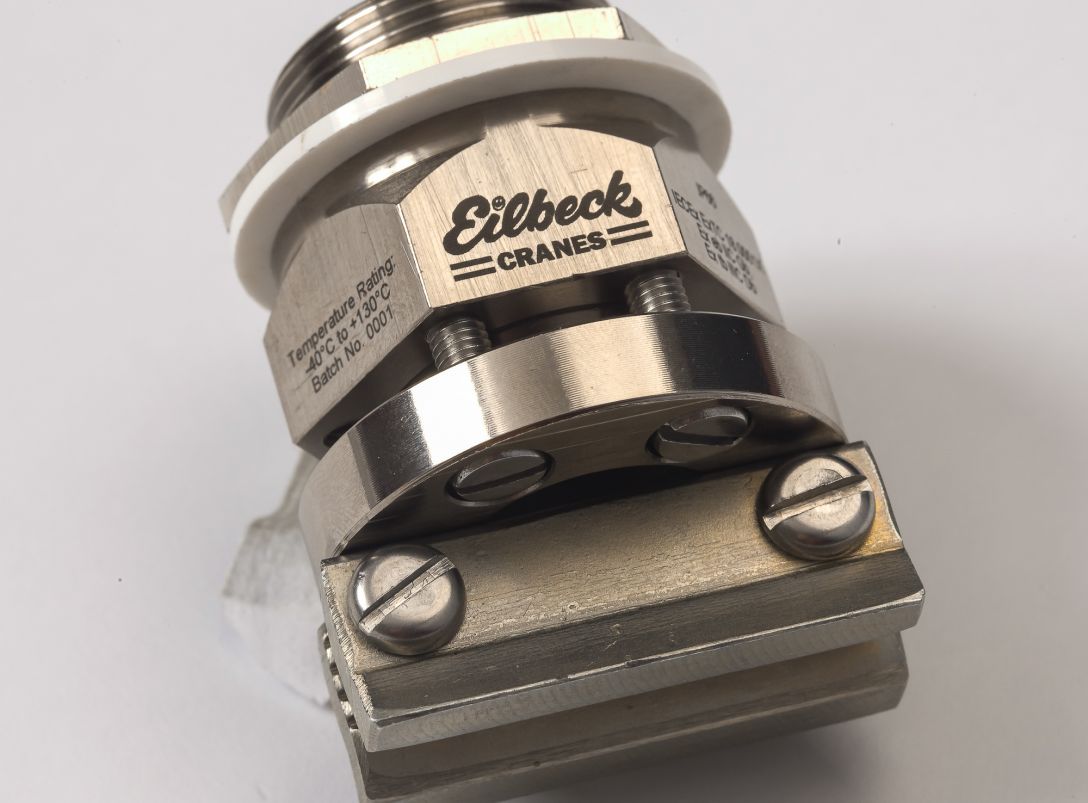

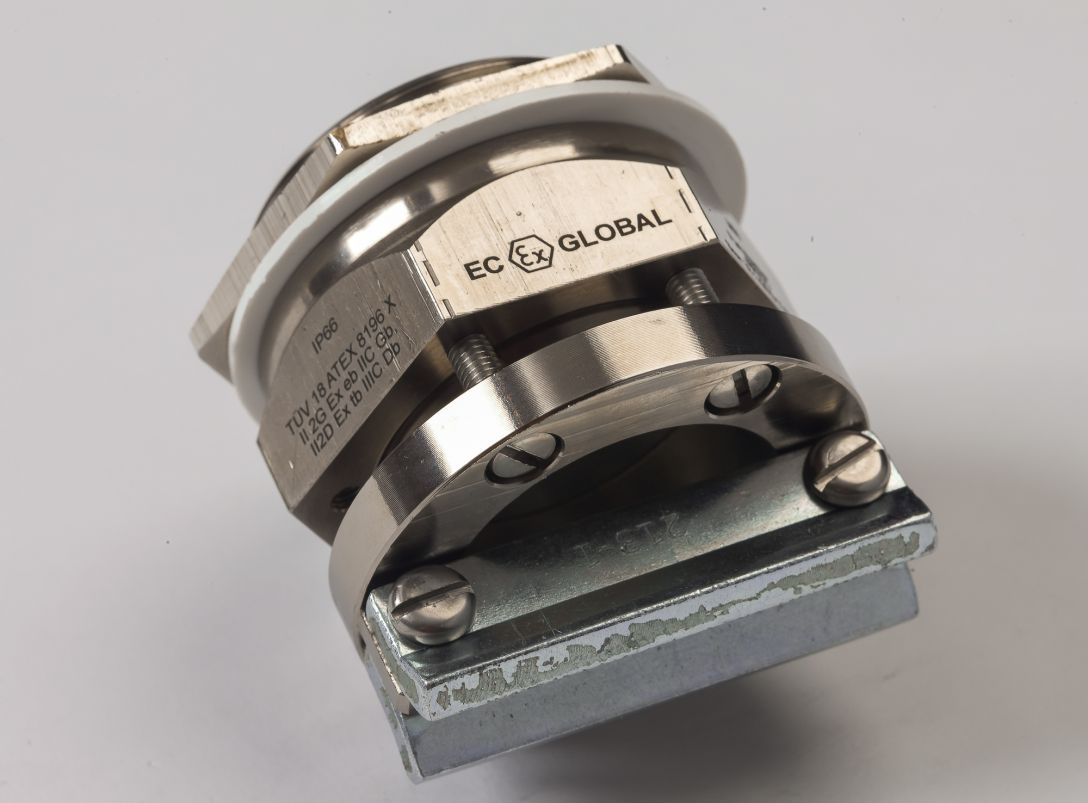

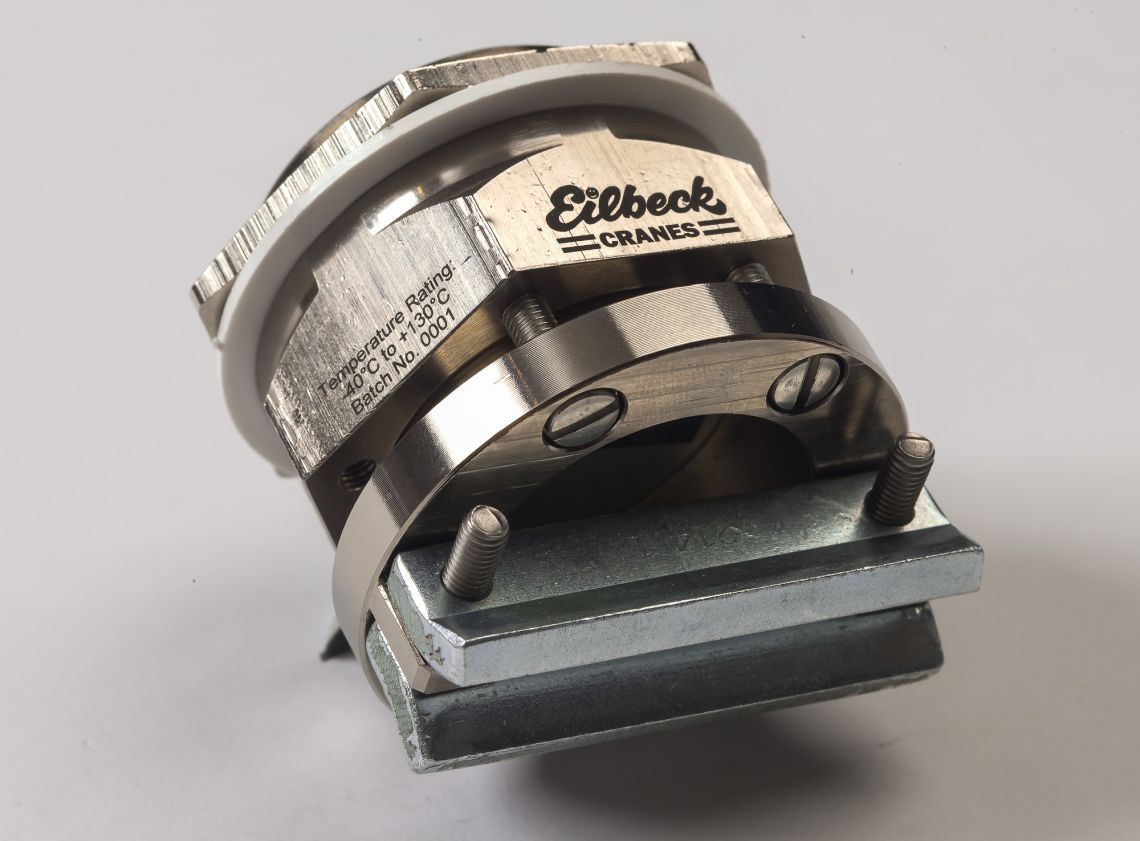

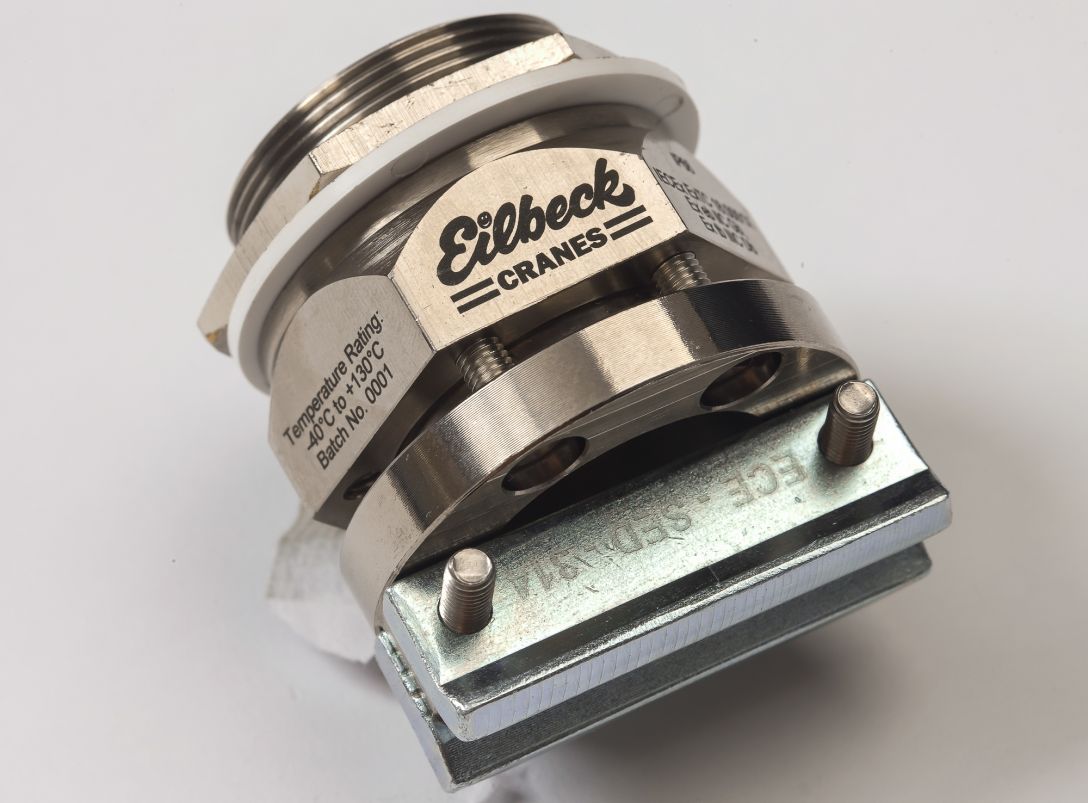

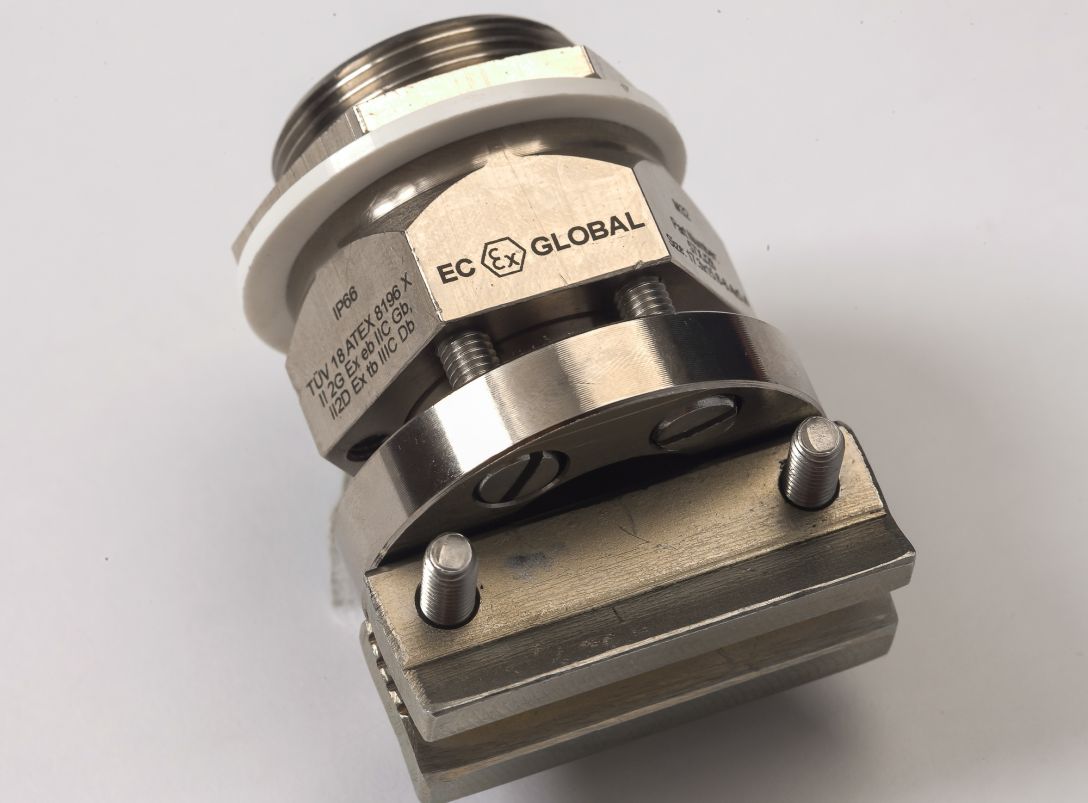

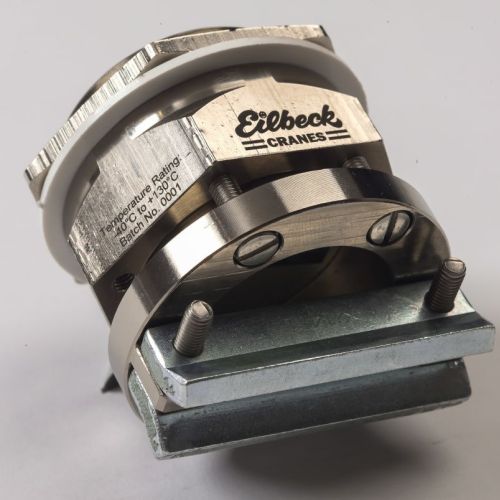

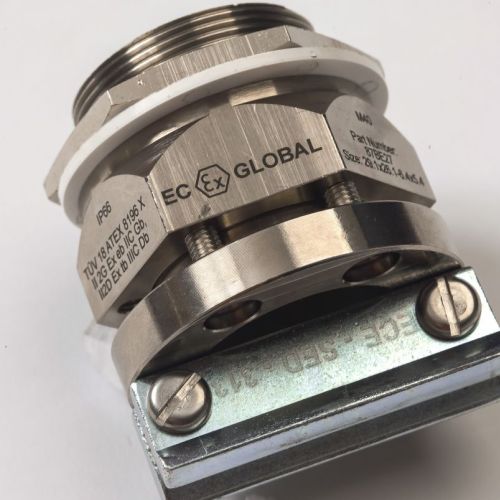

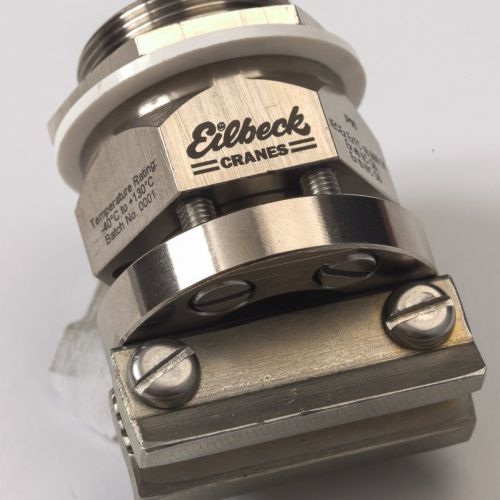

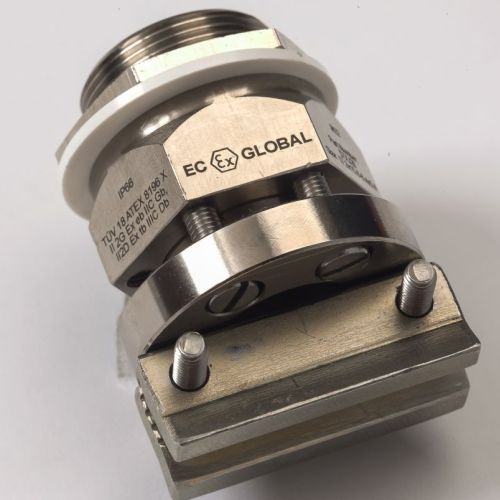

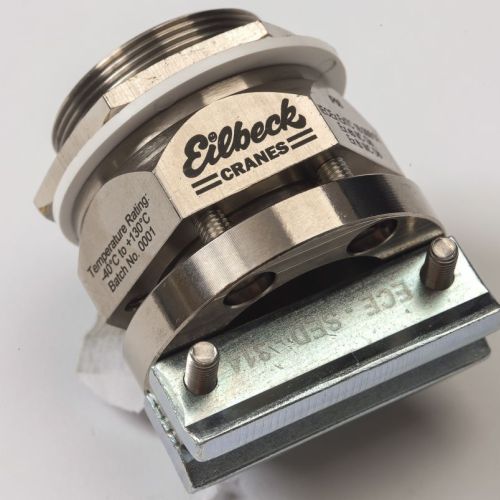

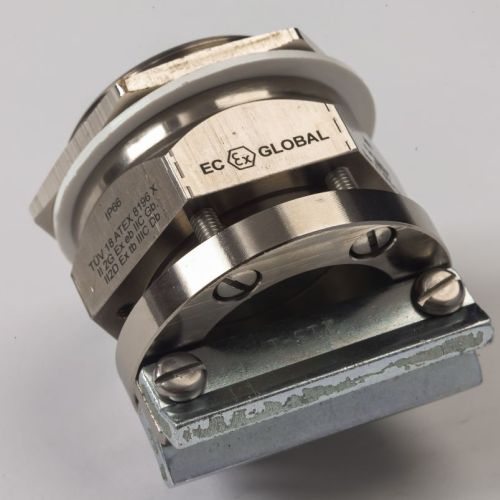

Flat Cable Gland for Ex Zones

No images were found.

Range of Flat Cable Glands

Cable Gland Model Number	Part Number	Thread Size	Cable Width		Cable Height
Cable Gland Model Number	Part Number	Thread Size	Max	Min	Max	Min
M75	ECE-DMS-500	33ZM64	48.0mm	42.0mm	14.0mm	12.0mm
M75	ECE-DMS-500	41YT29	48.0mm	42.0mm	16.0mm	14.0mm
M75	ECE-DMS-500	28DR91	54.0mm	48.0mm	8.0mm	6.0mm
M75	ECE-DMS-500	95QM47	54.0mm	48.0mm	12.0mm	10.0mm
M75	ECE-DMS-500	28SZ74	54.0mm	48.0mm	14.0mm	12.0mm
M75	ECE-DMS-500	98KQ79	54.0mm	48.0mm	16.0mm	14.0mm
M75	ECE-DMS-500	52EL32	54.0mm	48.0mm	18.0mm	16.0mm
M75	ECE-DMS-500	70RJ74	60.0mm	54.0mm	8.0mm	6.0mm
M75	ECE-DMS-500	10AJ98	60.0mm	54.0mm	10.0mm	8.0mm
M75	ECE-DMS-500	48UZ34	60.0mm	54.0mm	12.0mm	10.0mm
M75	ECE-DMS-500	82LE37	60.0mm	54.0mm	14.0mm	12.0mm
M75	ECE-DMS-500	82ZW50	60.0mm	54.0mm	16.0mm	14.0mm
M75	ECE-DMS-500	80AY96	60.0mm	54.0mm	18.0mm	16.0mm
M75	ECE-DMS-500	34YK95	60.0mm	54.0mm	20.0mm	18.0mm
M75	ECE-DMS-500	35CP37	66.0mm	60.0mm	10.0mm	8.0mm
M75	ECE-DMS-500	35QM22	66.0mm	60.0mm	14.0mm	12.0mm
M75	ECE-DMS-500	17WR38	66.0mm	60.0mm	18.0mm	16.0mm
M75	ECE-DMS-500	28VL32	66.0mm	60.0mm	20.0mm	18.0mm
M75	ECE-DMS-500	65DH50	66.0mm	60.0mm	22.0mm	20.0mm
M63	ECE-DMS-100	84ZZ32	47.5mm	43.5mm	7.2mm	6.0mm
M63	ECE-DMS-100	40GY31	46.0mm	43.0mm	15.5mm	13.5mm
M63	ECE-DMS-100	87WP91	45.0mm	40.0mm	14.5mm	12.5mm
M63	ECE-DMS-100	85XL61	44.0mm	39.6mm	12.9mm	10.9mm
M63	ECE-DMS-100	16CK32	41.5mm	37.9mm	6.5mm	5.0mm
M63	ECE-DMS-100	83DD66	40.0mm	36.0mm	11.5mm	9.5mm
M63	ECE-DMS-100	42BP71	39.5mm	34.5mm	13.5mm	11.5mm
M63	ECE-DMS-100	68DU33	38.3mm	35.0mm	8.5mm	6.5mm
M50	ECE-DMS-200	71XL89	36.9mm	32.3mm	11.5mm	9.5mm
M50	ECE-DMS-200	68UH79	33.9mm	31.0mm	7.8mm	6.6mm
M50	ECE-DMS-200	48RX75	33.1mm	30.0mm	11.0mm	9.9mm
M50	ECE-DMS-200	58HJ45	31.8mm	28.0mm	8.5mm	6.4mm
M50	ECE-DMS-200	64EY89	31.0mm	28.1mm	10.0mm	8.0mm
M50	ECE-DMS-200	21VL32	30.6mm	27.5mm	10.5mm	8.5mm
M50	ECE-DMS-200	68ND13	31.5mm	28.5mm	6.5mm	4.5mm
M40	ECE-DMS-300	87BE27	29.1mm	26.1mm	6.4mm	5.4mm
M40	ECE-DMS-300	24JD90	28.0mm	25.4mm	10.3mm	8.7mm
M40	ECE-DMS-300	12VW31	26.6mm	23.2mm	8.5mm	6.5mm
M40	ECE-DMS-300	35DE83	25.3mm	23.0mm	9.4mm	8.0mm
M40	ECE-DMS-300	20ZT41	24.6mm	22.1mm	6.5mm	4.5mm
M40	ECE-DMS-300	60MY87	24.0mm	21.0mm	9.5mm	7.5mm
M40	ECE-DMS-300	95GC59	23.5mm	20.8mm	8.0mm	6.0mm
M40	ECE-DMS-300	35HF98	22.0mm	19.5mm	6.5mm	4.5mm
M40	ECE-DMS-300	90VB44	20.0mm	17.0mm	8.5mm	6.5mm
M40	ECE-DMS-300	63YY85	20.0mm	17.0mm	6.5mm	4.5mm
M32	ECE-DMS-400	36PB33	22.0mm	19.5mm	6.5mm	4.5mm
M32	ECE-DMS-400	32ZL60	20.7mm	18.7mm	7.8mm	6.6mm
M32	ECE-DMS-400	94PP59	20.0mm	17.0mm	6.5mm	4.5mm
M32	ECE-DMS-400	57XJ28	17.3mm	15.6mm	6.4mm	5.4mm
M32	ECE-DMS-400	63GL74	16.9mm	14.5mm	6.5mm	4.5mm

Price on Application

Cable Gland Features

AVAIALBE SIZES:
M32, M40, M50, M63, M75

MATERIAL:
BRASS ALLOY - STAINLESS STEEL AVAILABLE ON REQUEST

FINISHING:
NICKEL PLATING WITH 25μm THICKNESS

HAZARDOUS AREA RATING:
Increased Safety Ex ‘e’, Enclosed by ‘tb’

IECEx MARKING:
Ex eb IIC Gb, Ex tb IIIC Db, IP66

ATEX MARKING:
II 2 G Ex eb IIC Gb, II 2 D Ex tb IIC Db, IP66

IECEx CERTIFICATE:
IECEx ExTC 18.0001X

ATEX CERTIFICATE:
TUV 18 ATEX8196X

TEMPERATURE RATING:
-40°C to +130°C
