ES80 Ex Hoist
Hoist Model |
Capacity |
|||||

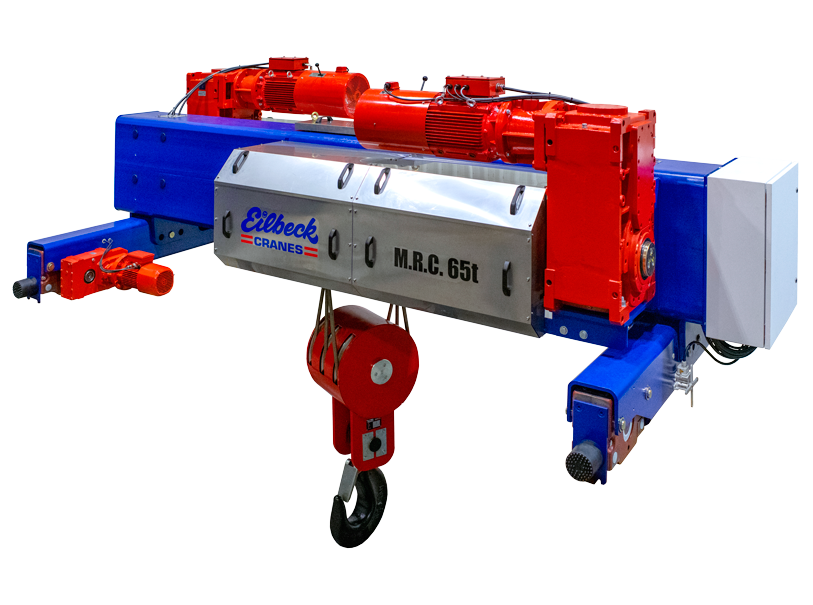

 Photo shows a Non-Ex version of the ES80 Hoist |
ES80 |
Up to 125,000 kg | ||||
| Reeving | Load Capacity (t) | HOL (m) | ||||
|
Customised |
||||||
ES80 |
CLASS | |||||||||
| Type Z | Type D | |||||||||
| 4/2 | 6/2 | 8/2 | 4/4 | 1/1 | 2/1 | 4/1 | 2/2 | 4/2 | ||
| LOAD [t] |
50 40 32 25 20 |
75 60 48 37.5 30 |
100 80 64 50 40 |
25 20 16 |
12.5 10 8 |
25 20 16 12.5 10 |
50 40 32 25 20 |
12.5 10 8 |
25 20 16 12.5 |
M5 M6 M7 M8 M8 |
| HOL [m] |
20 40 60 80 |
13.3 26.7 40.0 53.3 |
10 20 30 40 |
20 40 60 80 |
40 80 120 160 |
20 40 60 80 |
10 20 30 40 |
20 40 60 80 |
10 20 30 40 |
|
| Lift Speed [m/min] |
5 8 10 12.6 20 |
3.3 5.3 6.7 8.4 13.3 |
2.5 4 5 6.3 10 |
10 16 20 25.2 40 |
10 16 20 25.2 40 |
5 8 10 12.6 20 |
2.5 4 5 6.3 10 |
10 16 20 25.2 40 |
5 8 10 12.6 20 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
