Wheatstone LNG Tank Jib Cranes
| Project Ref: | 86363 |
| Client: | Entrepose France and Thiess Australia |
| Project: | Wheatstone LNG Project at Onslow site in Western Australia |
| Project Owner: | Hevron Australia |
| Scope: | 4 off 7.35t Pillar Jib Cranes VS and LS Type |
| Engineering, Procurement and Construction: |
Bechtel Houston |

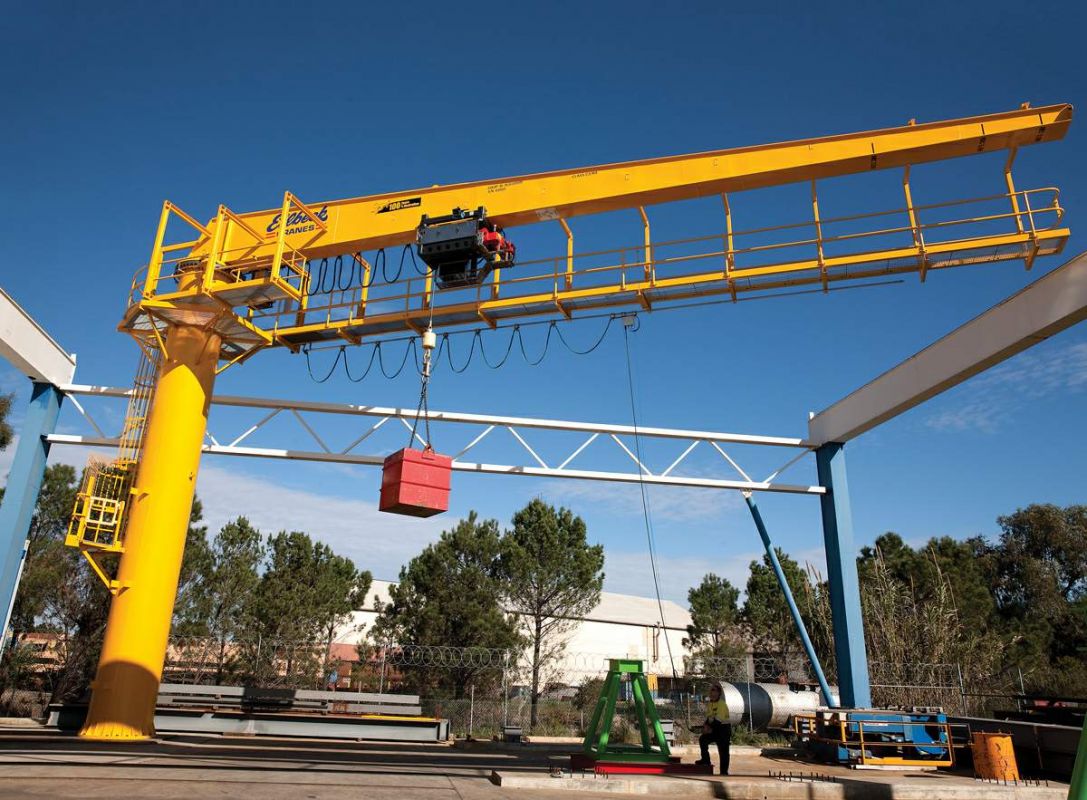

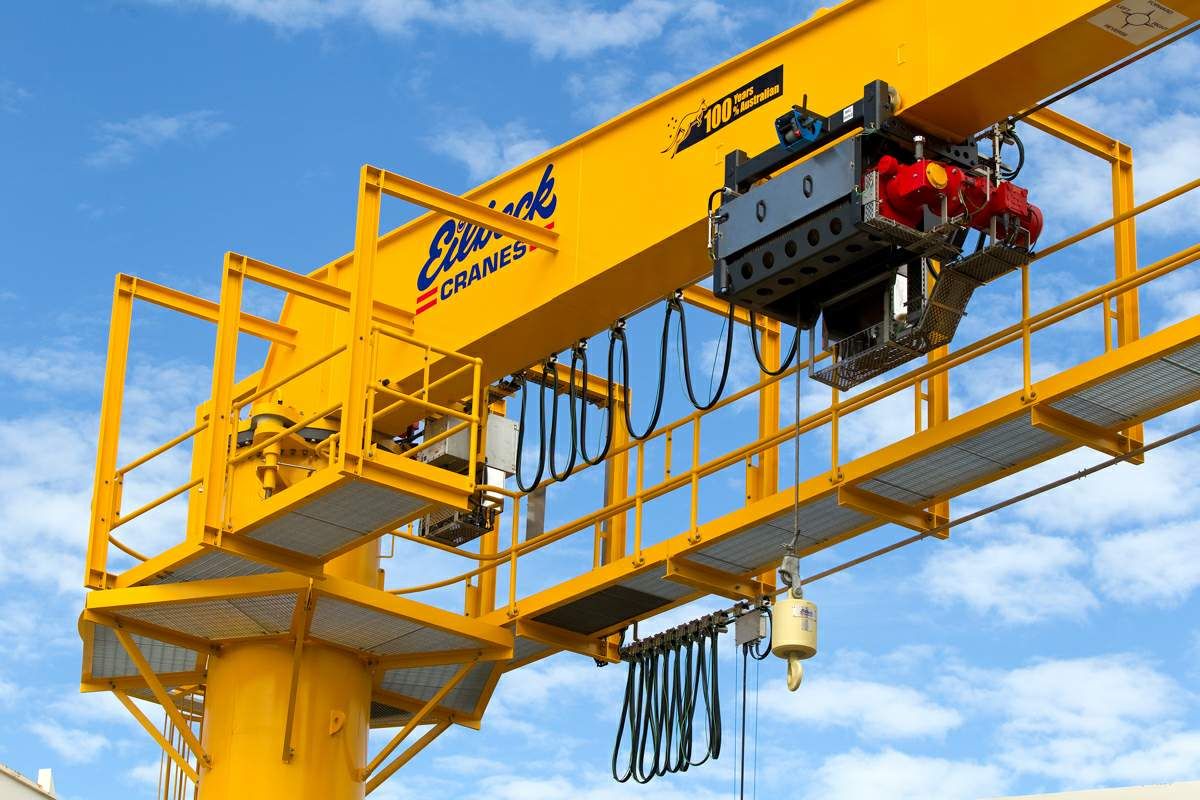

Brief description of Cranes:
- 4 off LNG Tank Pump handling Jib Cranes
- Capacity: 7.35t @ 17.125m radius, 5.4t @ 19.125m radius & 0.9t@ 20.125m radius
- Under side of jib arm to base of the jib crane: 11.86m & lifting height 71m
- Zone 2 Ex de IIB T3 IECEx
- Fully designed to project specification
- Full maintenance access ladder and platform
- Non sparking features as solid bronze wheels and bronze coated hooks
- Lightening protection
- Motors and gear box of cast iron body suitable for corrosive environments
- Non-sparking diamond track SS catenary system for power supply system
- Manual lowering in case of power failure
- Designed for cyclonic area complete with manual storm lock
