Ex Hoist Designed Specifically for Heavy Use

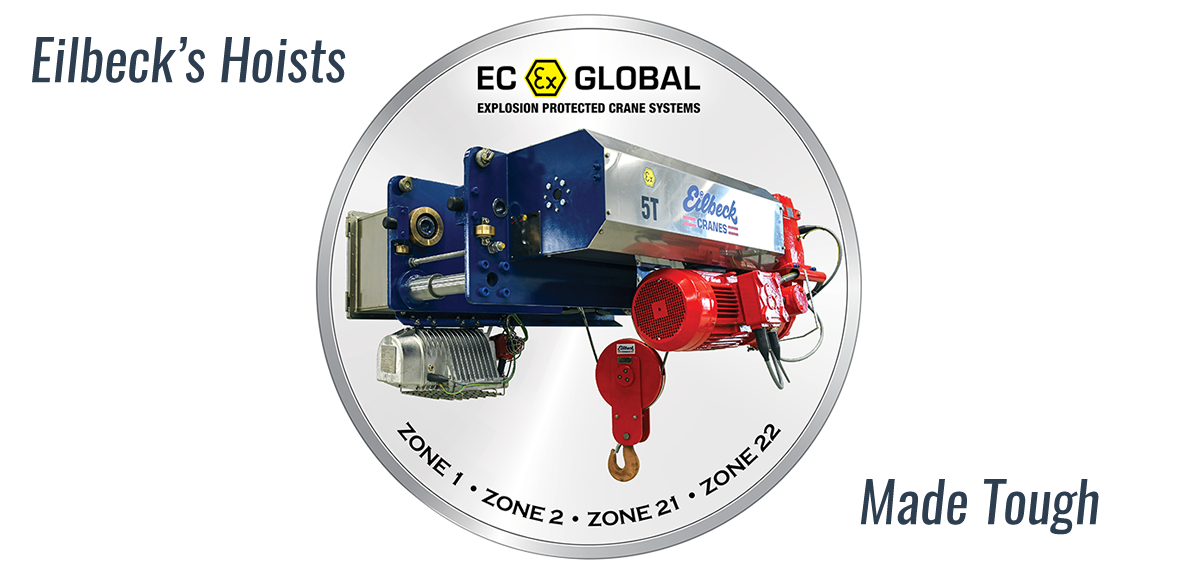

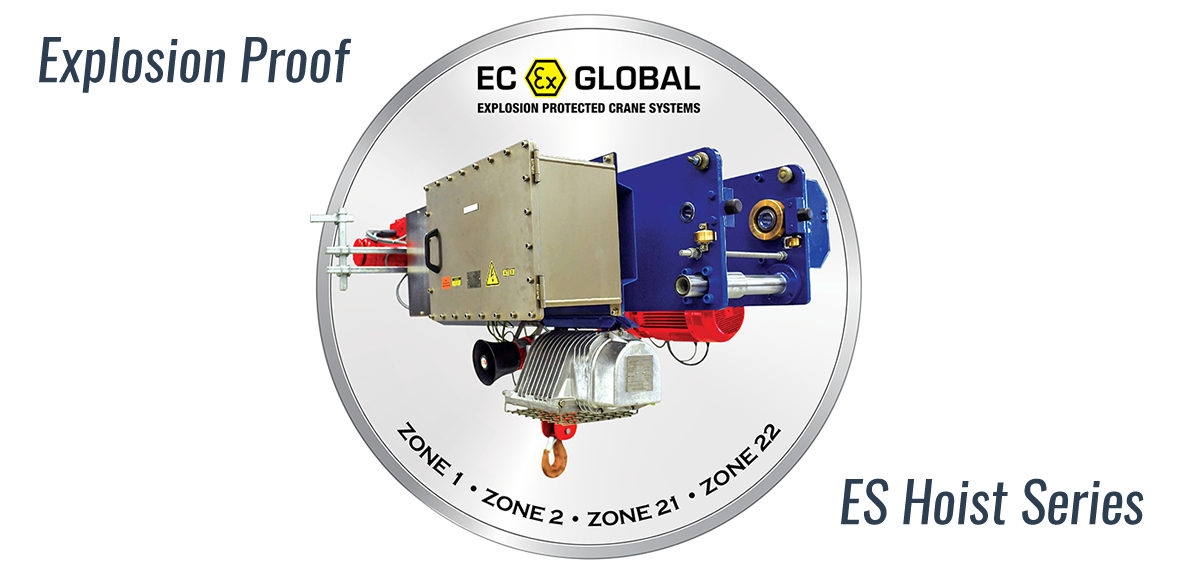

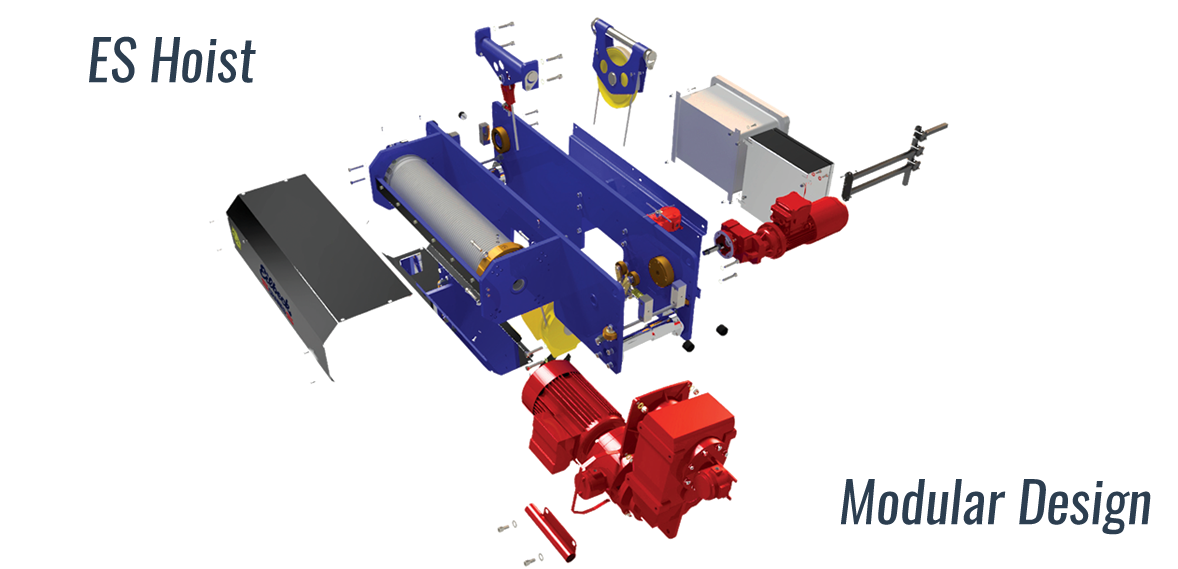

Eilbeck Cranes Explosion Proof Explosion proof New ES Series Hoist is manufactured in Eilbeck’s Sydney based Hoist Factory which is fully equipped with state-of-the-art CNC machine tools set up specifically for production of hoists and winches. The modular design enables specific materials selection for onshore, offshore, hazardous and corrosive environment requirements.

The hoists are classified in models based on their capacity and application with serial models including the range ES20 to ES60, however, the custom designed open winch model ES80 goes up to 160t capacity.

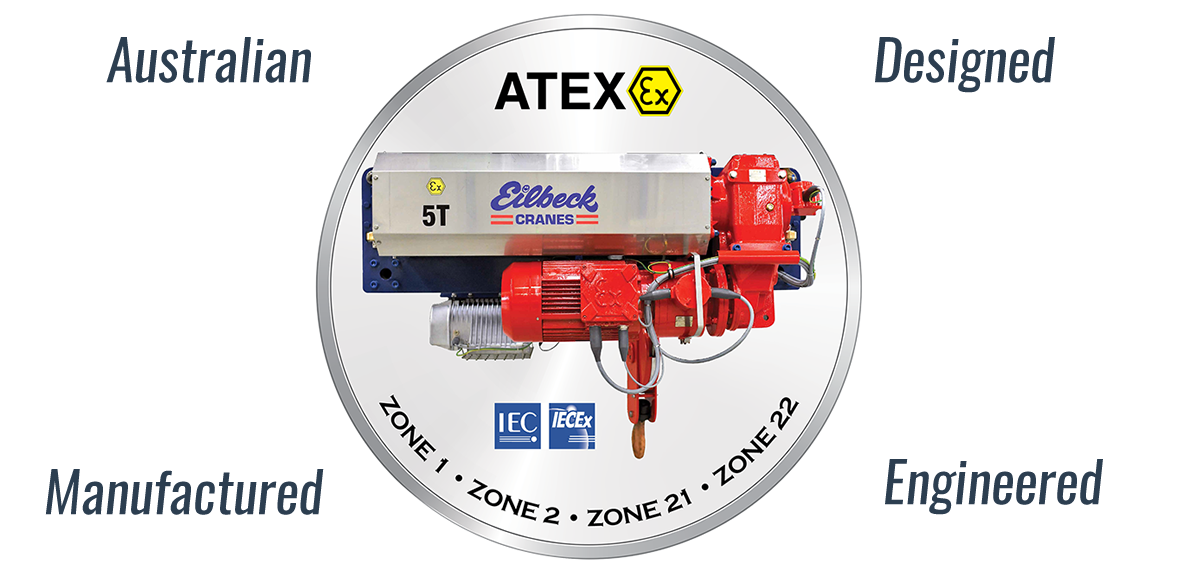

With a robust but compact modular design offering a wide range of hook paths and lifting speeds incorporating FEM, ISO, AS, ATEX and IECEX Standards, the ES Hoist’s modern design centered around reliability, durability and enabling easy maintenance, makes it a world class product at a competitive price. There is a wide range of realistically priced optional add on items to meet project requirements. durability and ease of maintenance and we offer world class product at very competitive price. We also offer wide range of optional items to meet the project specification.

  • slide
  • slide
  • slide
  • slide

Reeving Configuration

Capacity Type Reeving 4/1   Type Reeving 2/1 or 4/2
(kg) Model FEM ISO HOL (m) Hoist Speeds (m/min) Model FEM ISO HOL (m) Hoist Speeds (m/min) Trolley Speed (m/min)
800                     ES 2004 4m M7 12 20 30       16/2.4 20/5 10/2.5
1000                     ES 2005 4m M7 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 2005 3m M6 12 20 30       16/2.4 20/5 10/2.5
                    ES 3005 4m M7 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
1250                     ES 2006 3m M6 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 2006 2m M5 12 20 30       16/2.4 20/5 10/2.5
                    ES 3006 4m M7 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 3006 3m M6 12 20 30       16/2.4 20/5 10/2.5
1600 ES 2004 4m M7 6 10 15       8/1.3 ES 2008 2m M5 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 3008 3m M6 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 4008 3m M6 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 5008 4m M7 12 20 30       16/2.4 20/5 10/2.5
2000 ES 2005 4m M7 6 10 15 4/0.7 5/0.8 6.3/1         12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
ES 2005 3m M6 6 10 15       8/1.3       12 20 30 8/1.3 10/1.6 12/2 16/2.4 20/5 10/2.5
ES 3005 4m M7 6 10 15 4/0.7 5/0.8 6.3/1         12 20 30   10/1.6 12/2 16/2.4 20/5 10/2.5
  3m               8/1.3                     20/5 10/2.5
2500 ES 2006 3m M6 6 10 15 4/0.7 5/0.8 6.3/1   ES 4012 2m M5 12 20 30 8/1.3 10/1.6 12/2 16/2.4 20/5 10/2.5
ES 2006 2m M5 6 10 15       8/1.3 ES 5012 3m M7 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
ES 3006 4m M7 6 10 15 4/0.7 5/0.8 6.3/1   ES 5012 3m M6 12 20 30       16/2.4 20/5 10/2.5
ES 3006 3m M6 6 10 15       8/1.3                     20/5 10/2.5
3200 ES 2008 2m M5 6 10 15 4/0.7 5/0.8 6.3/1   ES 4016 2m M5 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
ES 3008 3m M6 6 10 15 4/0.7 5/0.8 6.3/1   ES 4016 1Am M4 12 20 30       16/2.4 20/5 10/2.5
ES 4008 3m M6 6 10 15 4/0.7 5/0.8 6.3/1   ES 5016 4m M7 12 20 30 8/1.3 10/1.6     20/5 10/2.5
ES 5008 4m M7 6 10 15       8/1.3 ES 5016 3m M6 12 20 30     12/2   20/5 10/2.5
                    ES 5016 2m M5 12 20 30       16/2.4 20/5 10/2.5
                    ES 6016 4m M7 12 20 30     12/2 16/2.4 20/5 10/2.5
4000 ES 3010 3m M6 6 10 15 4/0.7 5/0.8 6.3/1   ES 5020 4m M7 12 20 30 8/1.3       20/5 10/2.5
ES 4010 3m M6 6 10 15 4/0.7 5/0.8 6.3/1 8/1.3   3m M6 12 20 30   10/1.6     20/5 10/2.5
ES 5010 4m M7 6 10 15   5/0.8 6.3/1 8/1.3   2m M5 12 20 30     12/2   20/5 10/2.5
                      1Am M4 12 20 30       16/2.4 20/5 10/2.5
                    ES 6020 4m M7 12 20 30 8/1.3 10/1.6 12/2   20/5 10/2.5
                    ES 6020 3m M6 12 20 30       16/2.4 20/5 10/2.5
5000 ES 4012 2m M5 6 10 15 4/0.7 5/0.8 6.3/1 8/1.3 ES 5025 2m M5 12 20 30 8/1.3 10/1.6     20/5 10/2.5
ES 5012 4m M7 6 10 15 4/0.7 5/0.8 6.3/1   ES 5025 3m M6 12 20 30 8/1.3       20/5 10/2.5
ES 5012 3m M6 6 10 15       8/1.3 ES 5025 1Am M6 12 20 30     12/2   20/5 10/2.5
                    ES 6025 4m M7 12 20 30 8/1.3       20/5 10/2.5
                    ES 6025 3m M6 12 20 30   10/1.6     20/5 10/2.5
                    ES 6025 2m M5 12 20 30     12/2   20/5 10/2.5
                    ES 6025 1Am M4 12 20 30       16/2.4 20/5 10/2.5
6300 ES 4016 2m M5 6 10 15 4/0.7 5/0.8 6.3/1   ES 5032 2m M5 12 20 30 8/1.3       20/5 10/2.5
ES 4016 1Am M4 6 10 15       8/1.3 ES 5032 1Am M4 12 20 30   10/1.6     20/5 10/2.5
ES 5016 4m M7 6 10 15 4/0.7 5/0.8     ES 6032 2m M5 12 20 30   10/1.6     20/5 10/2.5
ES 5016 3m M6 6 10 15     6.3/1   ES 6032 3m M6 12 20 30 8/1.3       20/5 10/2.5
ES 5016 2m M5 6 10 15       8/1.3                     20/5 10/2.5
ES 6016 4m M7 6 10 15     6.3/1 8/1.3                     20/5 10/2.5
8000 ES 5025 4m M7 6 10 15 4/0.7       ES 6032 2m M5 12 20 30 8/1.3 10/1.6     20/5 10/2.5
  3m M6 6 10 15   5/0.8                         20/5 10/2.5
  2m M5 6 10 15     6.3/1                       20/5 10/2.5
  1Am M4 6 10 15       8/1.3                     20/5 10/2.5
ES 6020 4m M7 6 10 15 4/0.7 5/0.8 6.3/1                       20/5 10/2.5
ES 6020 3m M6 6 10 15       8/1.3                     20/5 10/2.5
10000 ES 5025 2m M5 6 10 15 4/0.7 5/0.8     ES 6050 1Am M4 12 20 30 8/1.3 10/1.6     20/5 10/2.5
ES 5025 3m M6 6 10 15 4/0.7                           20/5 10/2.5
ES 5025 1Am M6 6 10 15     6.3/1                       20/5 10/2.5
ES 6025 4m M7 6 10 15 4/0.7                           20/5 10/2.5
ES 6025 3m M6 6 10 15   5/0.8                         20/5 10/2.5
ES 6025 2m M5 6 10 15     6.3/1                       20/5 10/2.5
ES 6025 1Am M4 6 10 15       8/1.3                     20/5 10/2.5
12500 ES 5032 2m M5 6 10 15 4/0.7                           20/5 10/2.5
ES 5032 1Am M4 6 10 15   5/0.8                         20/5 10/2.5
ES 6032 2m M5 6 10 15   5/0.8                         20/5 10/2.5
ES 6032 3m M6 6 10 15 4/0.7                           20/5 10/2.5
16000 ES 6032 2m M5 6 10 15 4/0.7 5/0.8                         20/5 10/2.5
20000 ES 6050 1Am M4 6 10 15 4/0.7 5/0.8                         20/5 10/2.5

We also offer wide range of optional items to meet project specifications.

Explosion ProofExplosion proofHoist are for Gas: Zone 1 & Zone 2 and Dust: Zone 21 & Zone 22
